AC test transformer system (GAS insulated type)

SUMMARY

SF6 insulated HV transformer test system is no need too much space for testing field and is designed for the GIS factory test and partial discharge test,and GIS instrument transformer test.Product design is conform to the IEC standard.

and SF6 insulated test system using is convenient which can be directly connected to GIS test object by flange connection.

It's features is as following

◆ Up to 800kV SF6 gas insulated test system

◆ Compact volume,no need too much space for testing field

◆ Strongly   ability   to   suit   to   be   widely   used   in   different   environment,more convenient than normal test transformer system

◆ Reliability for long term running with low PD

◆ Without special testing hall,saving space

◆ With non-pd design and high reliability

MAIN   COMPONENTS

◆ Gas insulated test transformer

◆ Switch cabinet

◆ Power  filter&HV  filter

◆ Voltage regulator

◆ Digital  control&measuring  system

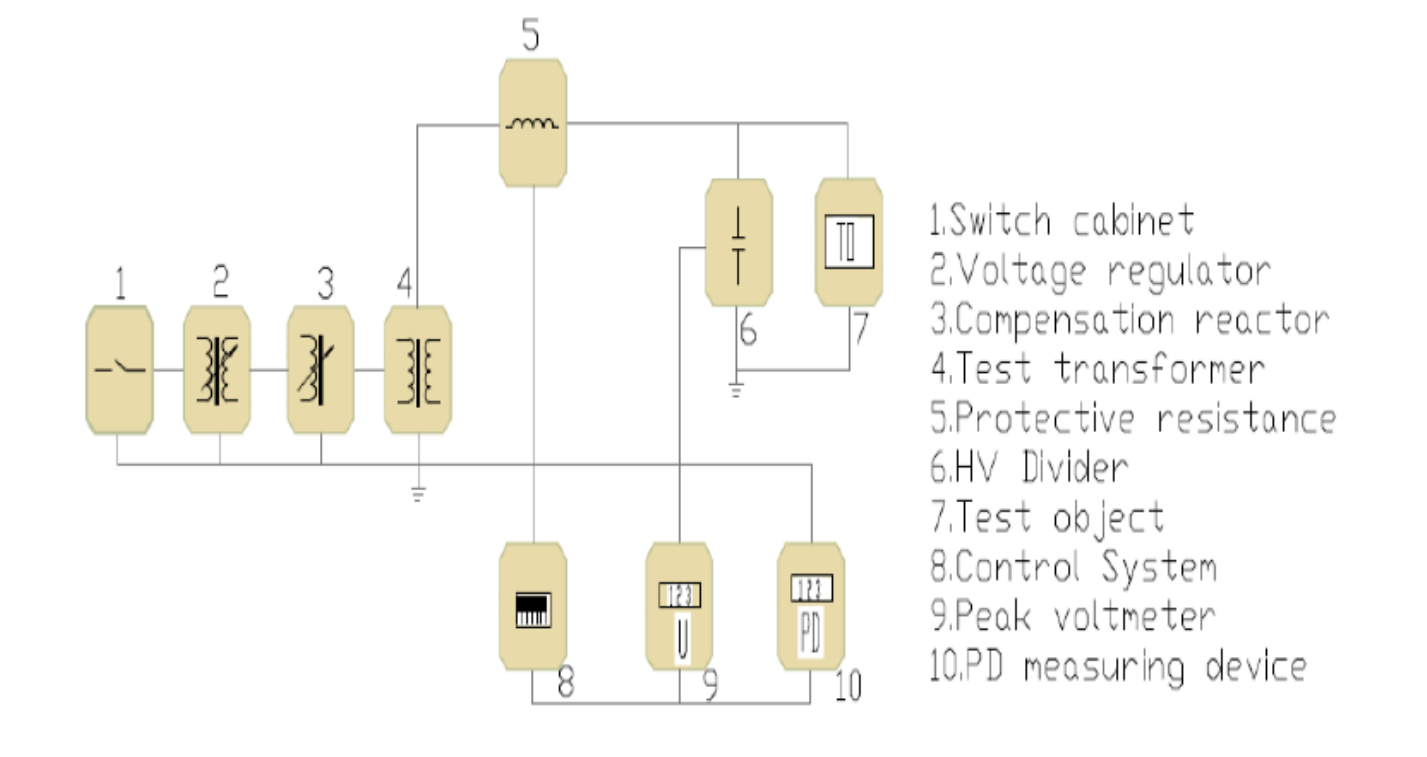

SYSTEM BLOCK DIAGRAM

SYSTEM MODELSHEET

(Note:   Upper is just for reference,additional models can be customized according customer requirement)
