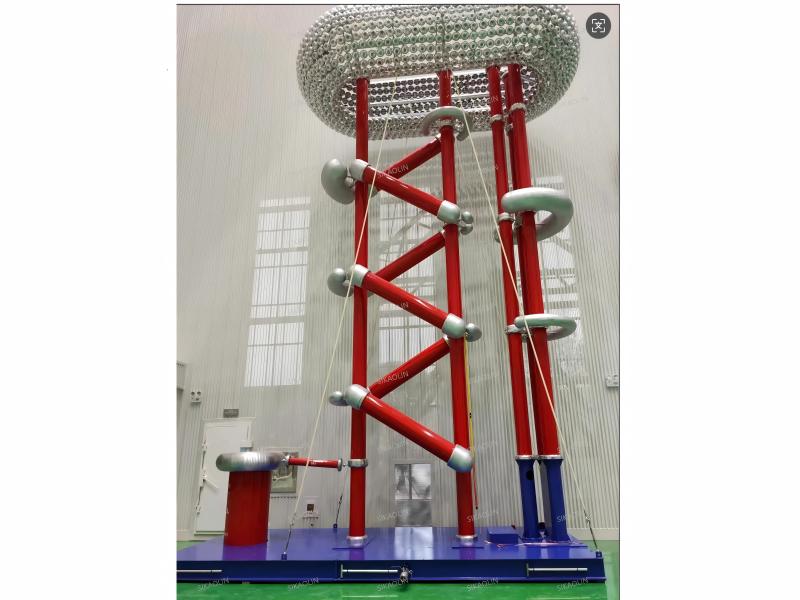

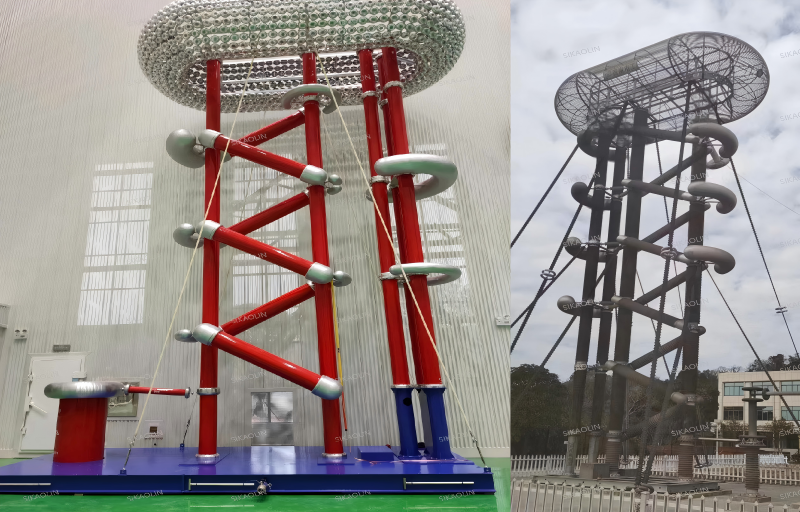

HV DC GENERATOR TEST SYSTEM
SUMMARY
It is especially designed for HVDC high voltage test,and can supply stable test voltage it can be applied for factory test &type test of DC cable,DC GIS,power transformer, bushing and so on,and product design is conform to the IEC standard.
It's features is as following,
◆ With module structure designing,HV silicon stack can generate fast polar converting.
◆ With powerful over voltage protection and high safety design for operation
◆ With digital control system,optical fiber communication,excellent EMC design
◆ With non-pd design and high reliability
MAIN COMPONENTS
◆ HVDC generator
◆ Damping resistor
◆ HV divider
◆ Isolation transformer
◆ Digital control system

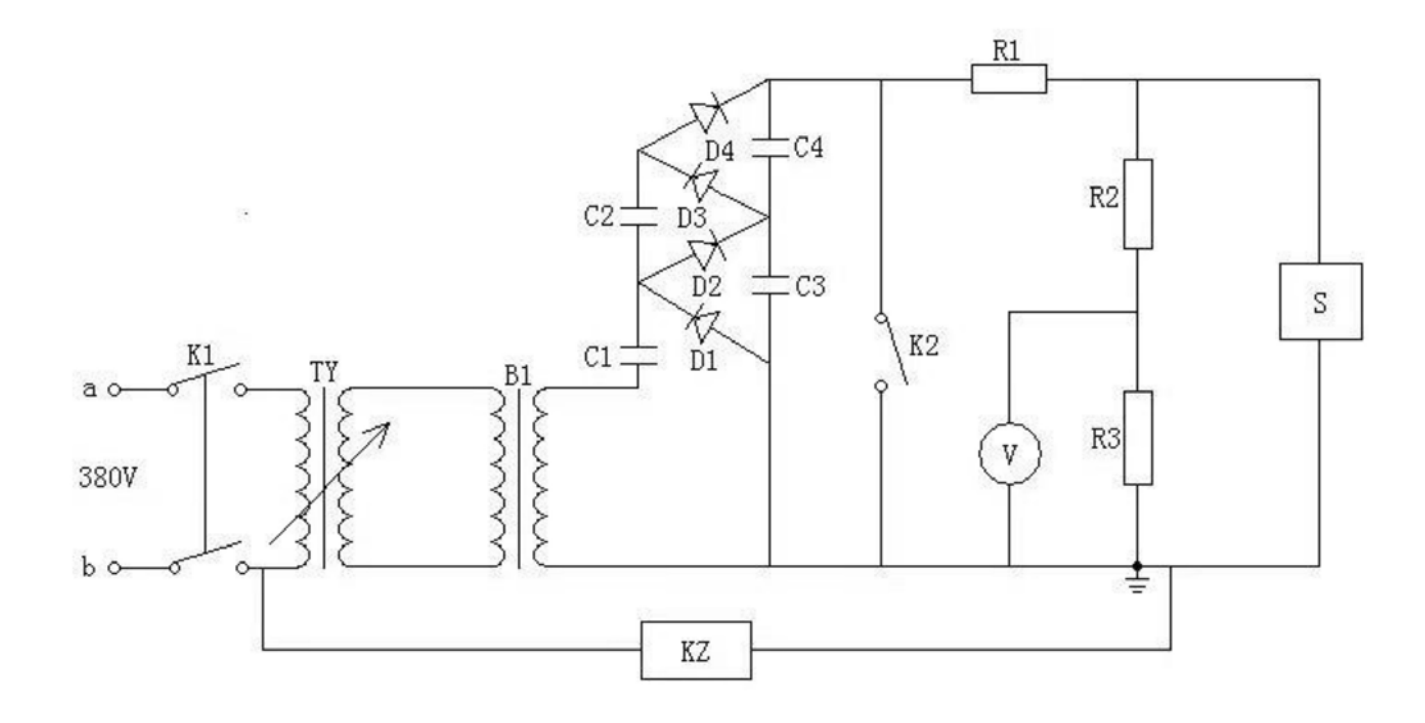

SYSTEM BLOCK DIAGRAM
SYSTEM MODEL SHEET
MODEL | RATING VOLTAGE | RATING CURRENT | RIPPLE FACTOR |
SLDC-200 | +/-200KV | 5 to 50mA | ≤3% |
SLDC-400 | +/-400KV | 5 to 50mA | ≤3% |
SLDC-500 | +/-500KV | 5 to 50mA | ≤3% |
SLDC-600 | +/-600KV | 5 to 50mA | ≤3% |
SLDC-800 | +/-800KV | 5 to 50mA | ≤3% |
SLDC-1000 | +/-1000KV | 5 to 50mA | ≤3% |
SLDC-1200 | +/-1200KV | 5 to 50mA | ≤3% |
SLDC-1500 | +/-1500KV | 5 to 50mA | ≤3% |
(Note: Upper is just for reference,additional models can be customized according customer requirement)
