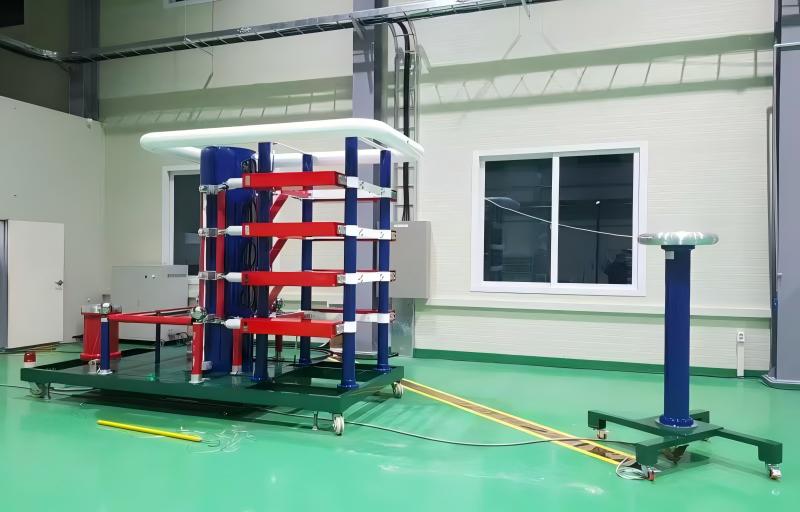

Impulse voltage test system

SUMMARY

It can be used to generate full &chopped lightning impulse wave and switch lightning wave, and mainly be applied for the type and research test of kinds of power equipment, just like power transformer, GiIs, instrument transformer, power cable and etc. and widely be used by power equipment manufacturer, test lab and research center. Product design is conform to the IEC standard.

Features is as following,

◆ With module structure designing,easy to be installed

◆ With Low circuit inductance design for impulse voltage generator

◆ With full automatic operation design,easy to operate

◆ With high efficiency design in impulse voltage generated

MAIN  COMPONENTS

◆ Impulse voltage generator

◆ DC charging equipment

◆ Impulse voltage divider with weak-Damped resistance

◆ Multiple chopping gap

◆ Digital control and measuring system

SYSTEM  BLOCK  DIAGRAM

SYSTEM  MODEL  SHEET

(Note:     Upper is just for reference,additional models can be customized according customer requirement)
