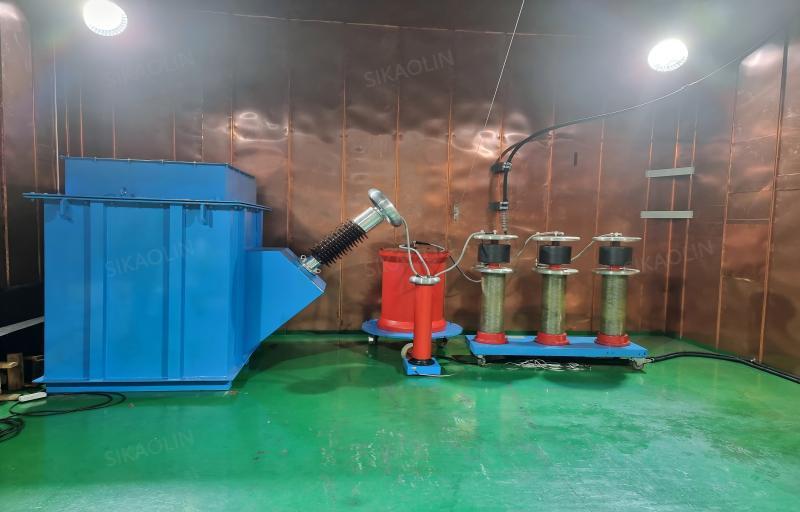

AC resonance test system (Variable frequency type)
SUMMARY
It is especially designed for field test of power transformer,GIS and power cable from 110kV to 750kV,and it can meet the IEC standard.
It's features is as following,
◆ With module structure designing,it is very flexible to have serial or parallel connection for meeting kinds of application
◆ With compatible designing,it is easy to move and load &unload during using.
◆ With friendly operation interface,is easy to operate during working
◆ With customized designing,flexible to use in field test
MAIN COMPONENTS
◆ Variable frequency converter
◆ Excitation transformer
◆ HV reactor
◆ Voltage divider
◆ Remote control system(optional)
◆ Container
SYSTEM BLOCK DIAGRAM
SYSTEM MODEL SHEET
MODEL | CAPACITY | RATING VOLTAGE | RATING CURRENT | FREQUENCY |
SLYFK-528/264 | 528kVA | 264kV | 2A | 30 to 300Hz |
SLYFK-528/2x264 | 528kVA | 528kV | 1A | 30 to 300Hz |
SLYFK-2640/2x264 | 2640kVA | 528kV | 5A | 30 to 300Hz |
SLYFK-3960/3x264 | 3960kVA | 792kV | 5A | 30 to 300Hz |
SLYFK-1300/130 | 1300kVA | 130kV | 10A | 30 to 300Hz |
SLYFK-2600/130 | 2600kVA | 130kV | 20A | 30 to 300Hz |
SLYFK-5200/2x130 | 5200kVA | 260kV | 20A | 30 to 300Hz |
SLYFK-10400/2x130 | 10400kVA | 260kV | 40A | 30 to 300Hz |
SLYFK-10400/4x130 | 10400kVA | 520kV | 20A | 30 to 300Hz |
(Note: Upper is just for reference,additional models can be customized according customer requirement)
