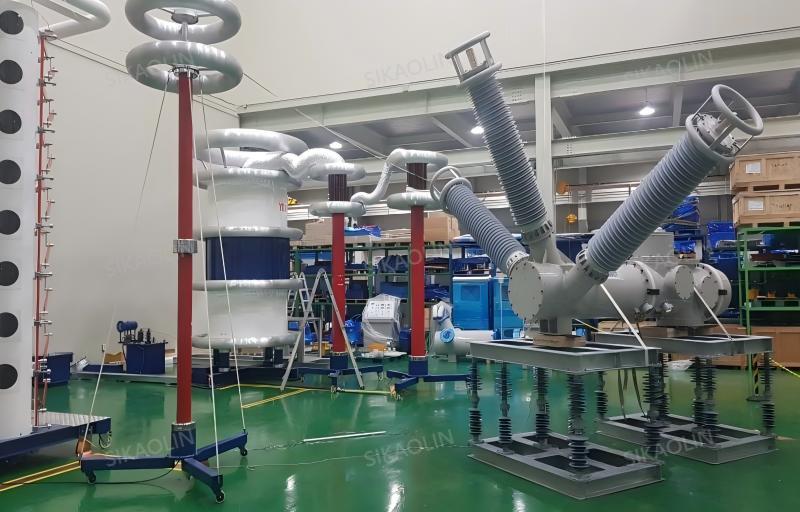

AC  resonance  test  system  (Variable   inductance)

SUMMARY

It is especially designed for high capacitive load test,example power cable,power capacitor,GIS,bushing and others test object,and it can be applied for factory test & type  test  and  other  application  situation.Product  design  is  conform  to  the   IEC standard.

It's features is as following,

◆ With  module  structure  designing,it  is  very  flexible  to  have  serial  or  parallel connection for meeting kinds of application.

◆ With high Q value designing

◆ With powerful over voltage protection and high safety design for operation

◆ With digital control system,optical fiber communication,excellent EMC design

◆ With non-pd design and high reliability

MAIN  COMPONENTS

◆ Variable inductance of cylinder or tank type of reactor

◆ High voltage divider and coupling capacitor

◆ HV filter

◆ Regulating transformer

◆ Excitation transformer

◆ Digital control system

SYSTEM  BLOCK  DIAGRAM

SYSTEM  MODEL  SHEET

(Note:    Upper is just for reference,additional models can be customized according customer requirement)
