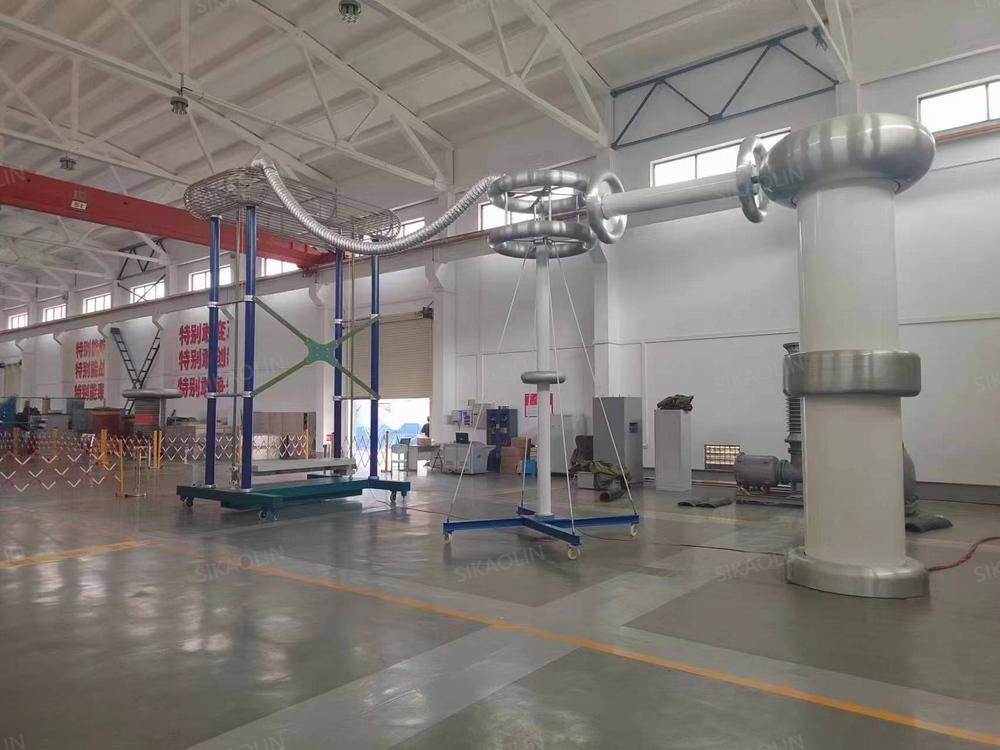

AC test transformer system (Oil insulated type)

SUMMARY

It is especially designed for low capacitive load or inductive load high voltage test,and can supply stable test voltage even if the test load capacitance changing during test, just like pollution test and wet test etc.it can be applied for factory test &type test of power transformer,bushing,surge arrestor,instrument transformer and gis. Product design is conform to the IEC standard.

It's features is as following,

◆ With  module  structure  designing,it  is  very  flexible  to  have  serial  or  parallel connection for meeting kinds of application.

◆ With powerful over voltage protection and high safety design for operation

◆ With digital control system,optical fiber communication,excellent EMC design

◆ With non-pd design and high reliability

MAIN  COMPONENTS

◆ Cylinder or tank type of test transformer

◆ High voltage divider and coupling capacitor

◆ HV filter

◆ Regulating transformer

◆ Compensating reactor

◆ Digital control system

SYSTEM  BLOCK  DIAGRAM

SYSTEM  MODEL  SHEET

(Note:     Upper is just for reference,additional models can be customized according customer requirement)
